◆產品特色 Product features(請繼(ji)續瀏覽訪問(wen)大點量實例照(zhao)片集供關聯性)

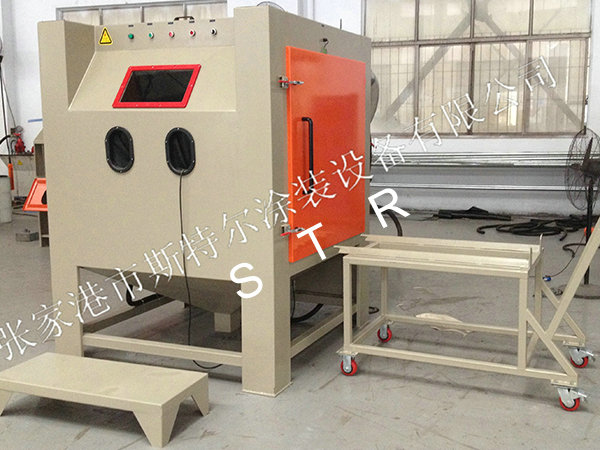

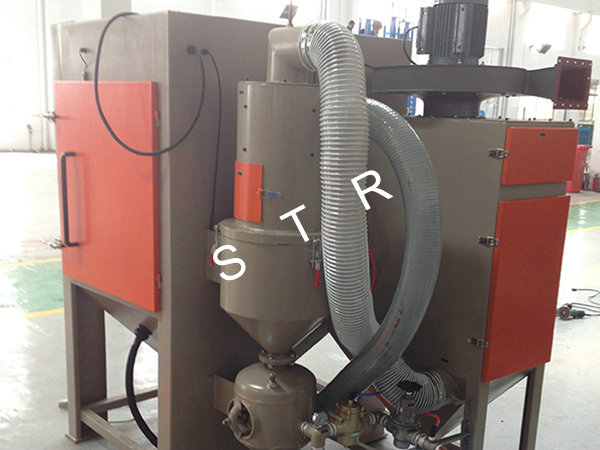

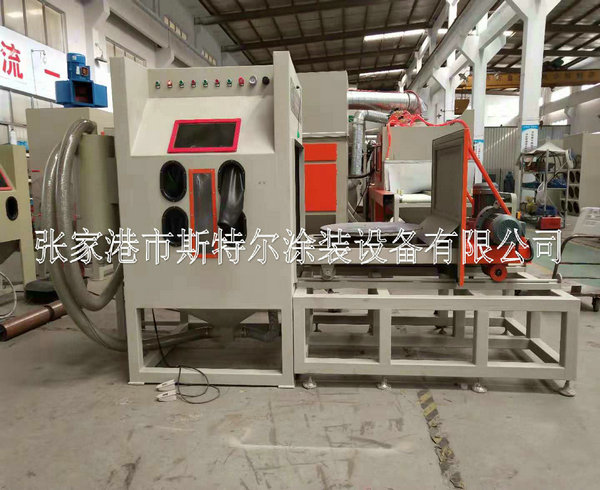

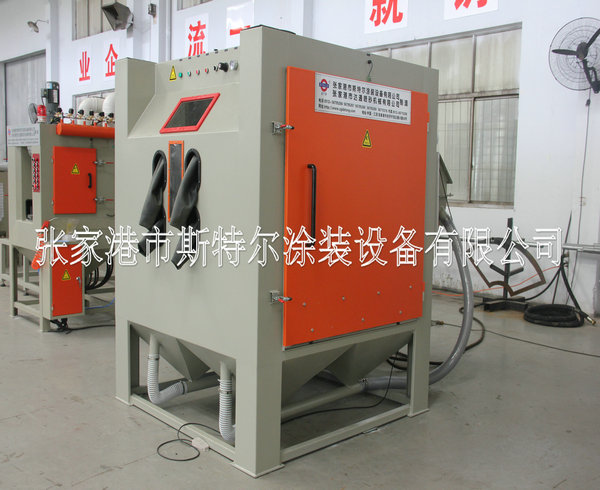

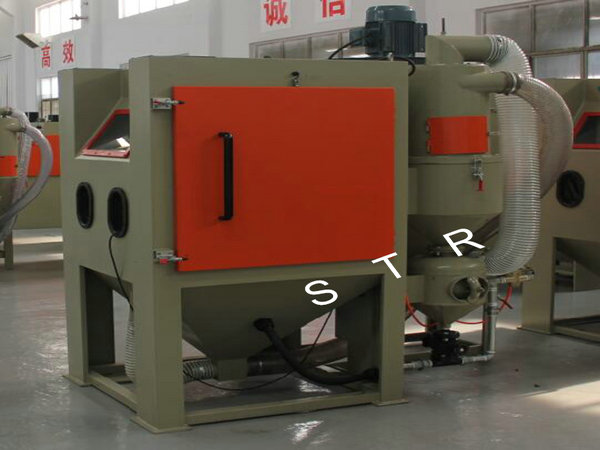

噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。
Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.
◆可用范圍之內 Applicable scope
電子技(ji)術家具五(wu)金(jin)類,ABSpp塑料,亞克力面板,合金(jin)模具。特重型(xing)鋼(gang)(gang)件(jian)、的結零件(jian)、聚酯樹脂等鋼(gang)(gang)件(jian)或生產(chan)技(ji)術品噴砂。
Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting
◆主要技能基本參數 Main technical parameters供符合明確(que)與行業建立聯系(xi)
|
儀器型號(hao)查詢(xun) Model |
STR-9070 |
STR-9080 |
STR-1010 |
STR-1212 |
|
任務艙厚度 Internal size(mm) |
900×700×790 |
900×800×700 |
1000×1000×670 |
1180×1180×980 |
|
該機尺(chi)寸圖 Complete machine size(mm) |
900×700×1780 |
950×850×1720 |
1000×1000×2100 |
1200×1200×2580 |
|
煙氣凈化箱厚度 Dedust box sizes(mm) |
600×600×1680 |
600×600×1680 |
600×600×1680 |
800×800×1780 |
|
主機電源 Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
機燈(deng)具照長明燈(deng) Machine floodlight |
220V 20W 工業(ye)節(jie)能燈管(guan) |
220V 20W 節電(dian)燈 |
220V 20W 發展(zhan)節能環(huan)保燈 |
220V 20W 節(jie)水燈 |
|
提取器三相電機 Separator motor |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55 |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55-3KW |
|
分離出來(lai)器新(xin)風量 Separator air volume |
8.5m3/min |
8.5m3/min |
8.5m3/min |
8.5m3/min |
|
解壓縮(suo)氣(qi)源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
機(ji)自重 Weight |
380kg |
380kg |
400kg |
380kg |
