◆產品的優缺點 Product features
1. 定制新(xin)鮮,內(nei)部結構外觀,的環保體驗(yan)好;
2. 可以調節式漩風(feng)脫離(li)器,能將(jiang)可以操(cao)(cao)作金剛石(shi)工具(ju)(ju)與小焊(han)接煙(yan)塵脫離(li),好的(de)金剛石(shi)工具(ju)(ju)仍然(ran)操(cao)(cao)作;
3. 基(ji)本(ben)零組件(jian)選(xuan)取品質進口清關機件(jian),選(xuan)用(yong)使用(yong)年限長;
4. 制作加工軸類外表不規則;
5. 多工作臺面結構設計;作業員可互相作業噴砂。依照用戶所需,待選擇人工或全自動 ;可按老客戶讓訂制!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆適于使用范圍 Applicable scope
護(hu)墻板,臺式機外層,專業音響后蓋板,三(san)文治烤盤等垂直面及(ji)方(fang)體工件產品(pin)的噴砂處理(li)。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆基本水平因素 Main technical parameters
|
機械型號(hao)查詢 Model |

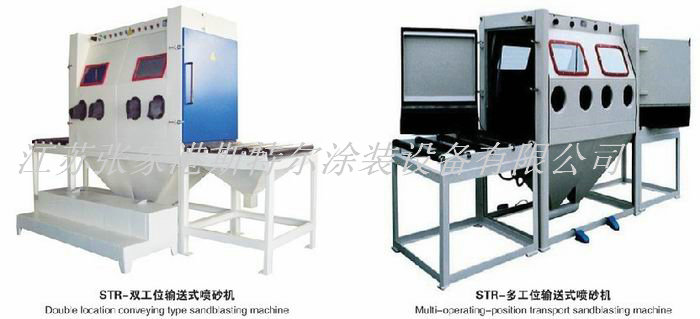

STR-多工位輸送式噴砂機 |
|
整體大小 Complete machine size(mm) |
3000×1000×1700 |
|
作業地方 Work space(mm) |
2000×1000×800 |
|
外輸送機寸尺 Conveying the size(mm) |
500×1000×1000(2件) |
|
降塵箱尺寸規格 Dedust box sizes(mm) |
600×600×1800 |
|
破乳器(qi)電動機 Separator motor |
220V 50HZ 550W |
|
脫離器風口尺寸 Separator air volume |
8.5m3/min |
|
進行壓(ya)縮氧氣源 Compressed air source |
2-8bar(kg/cm2) |
|
噴槍 Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W隔爆燈 |
|
電腦容量(liang) Machine weight |
550kg |
