管道外壁自動噴砂機
◆適于區域 Applicable scope
管類零(ling)件(jian),如:保溫(wen)鋼管、彈簧鋼、拉杠(gang)、羅(luo)桿、中(zhong)大型(xing)圓形、筒體類、圓形型(xing)類件(jian);選取雙(shuang)槍(qiang)(可按想要多槍(qiang))及風暴(bao)式(shi)排(pai)塵器和微電子自感應模塊,增進了(le)加工率(lv)及極大程度上(shang)的(de)減低(di)了(le)維(wei)護(hu)率(lv)。 (此cpu型(xing)號需(xu)預(yu)期)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆其主要技術水平因素 Main technical parameters
|
系統類型 Model |

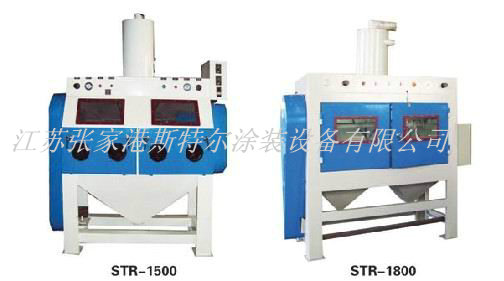

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
工作任務艙尺寸大小 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
機床圖片尺寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
減小氣體源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
外接電源 Power |
220v 50Hz |
220v 50Hz |
|
變頻同步電機調速器器 Governor |
250W×2 |
250W×2 |
|
離心分離機三相異步電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
剝離器風口尺寸 Air separator |
35m3/min |
35m3/min |
|
機毛重 Machine weight |
900kg |
900kg |
