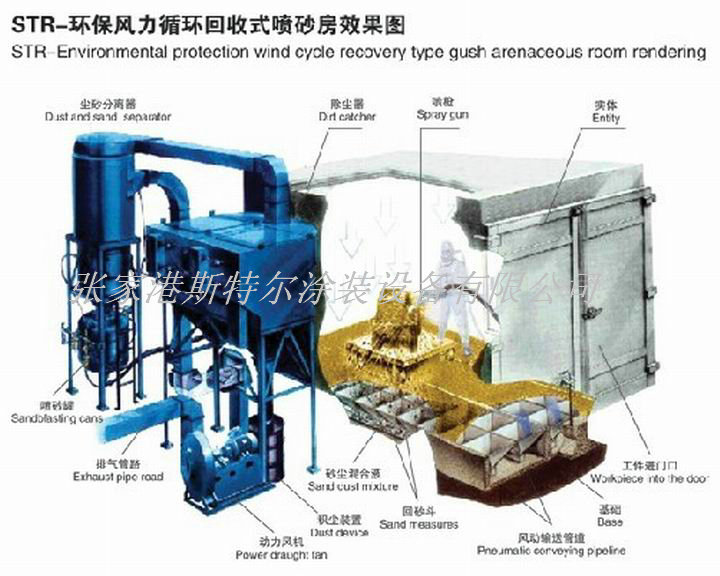

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的組合成軟件系統

Composition of the sandblasting (shot) room system

1、業務室  Studio

2、噴砂裝置  Sandblasting  system

3、爐料收售模式  Abrasive recycle system

4、收塵機系統  Dust removal system

5、軸類輸送帶控制系統  Workpiece conveying system

6、把握設備  Control system

7、照明電器程序  Lighting system

 ◆應(ying)用位置(zhi) Applicable scope

特(te)大型(xing)鑄件鍛件、不銹鋼(gang)焊接鋼(gang)構造、變電(dian)器(qi)汽車(che)(che)油(you)箱、建設(she)工程設(she)備設(she)備性、電(dian)動車(che)(che)維修、蒸汽鍋(guo)爐(lu)產生、醫藥化工設(she)備性、船只修造等噴砂(sha)防銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆成品(pin)特(te)性(xing) Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

體現了下例優缺：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、爐(lu)料收購率高(gao)，以及清換爐(lu)料；

3、通常電子(zi)(zi)商務(wu)電子(zi)(zi)器件均用(yong)進口服(fu)務(wu)，兼有效果動態平衡，安全(quan)管理穩定可靠，在使(shi)用(yong)時間長，定期維(wei)護簡便(bian)；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、機器選擇(ze)單級(ji)(ji)布袋(dai)收(shou)(shou)塵設(she)備(bei)(bei)(bei)，第一點(dian)級(ji)(ji)選擇(ze)漩風(feng)轉移器，第三級(ji)(ji)用濾筒式(shi)布袋(dai)收(shou)(shou)塵設(she)備(bei)(bei)(bei)系統的，其總布袋(dai)收(shou)(shou)塵設(she)備(bei)(bei)(bei)利用率能達99.99%以下；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各(ge)平臺電機(ji)掌(zhang)控設備用(yong)互鎖掌(zhang)控，當這(zhe)之(zhi)中一平臺經(jing)常(chang)出現(xian)出現(xian)問題時，相關內(nei)容平臺均(jun)退(tui)(tui)出作業，噴槍退(tui)(tui)出噴射式；

8、房體主要(yao)包括古(gu)建(jian)筑裝飾布(bu)規(gui)劃，外裝簡約(yue)快捷、不美觀、規(gui)定(ding)，消除噪音郊(jiao)果好，且(qie)組裝快捷。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
